Запчасти Aodes 2024 PATHCROSS 650L MUD PRO

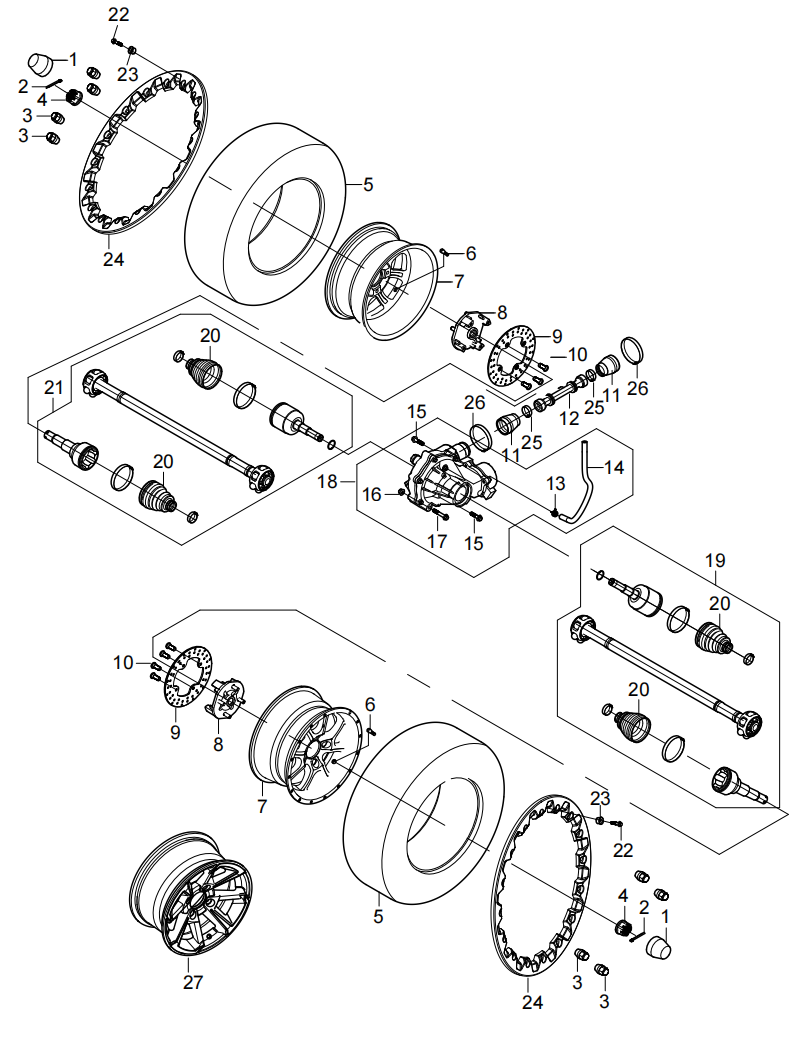

DIAGRAM 2024 AODES FRONT DRIVE SYSTEM F01

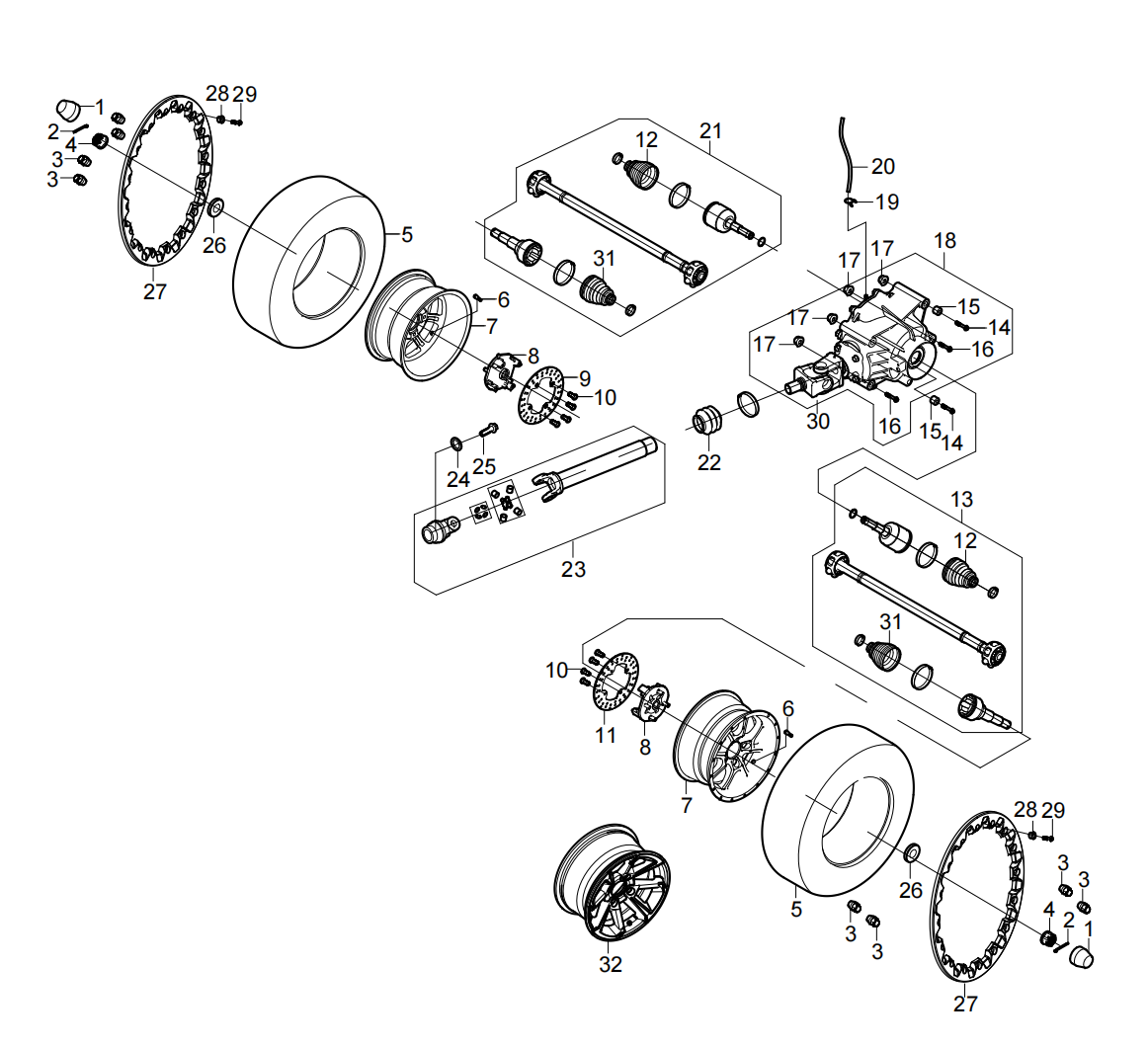

DIAGRAM 2024 AODES REAR DRIVE SYSTEM F02

Передняя подвеска

DIAGRAM 2024 AODES REAR SUSPENSION SYSTEM F04

DIAGRAM 2024 AODES HANDLEBAR F05

DIAGRAM 2024 AODES STEERING SYSTEM(SEPARATED EPS) F06

DIAGRAM 2024 AODES FRAME&ACCESSORIES F07

DIAGRAM 2024 AODES FUEL SYSTEM F08

DIAGRAM 2024 AODES ENGINE INSTALLATION F09

DIAGRAM 2024 AODES INTAKE SYSTEM F10

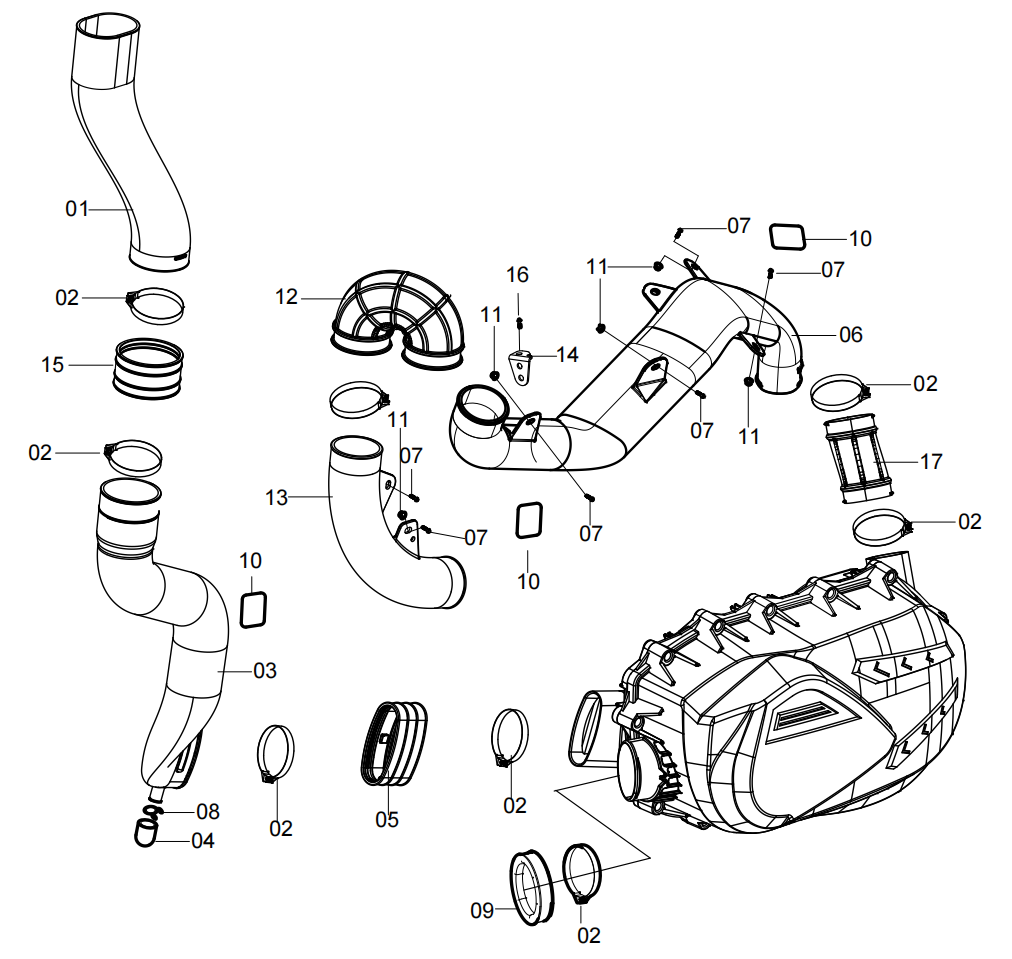

DIAGRAM 2024 AODES CVT INTAKE&EXHAUST SYSTEM F11

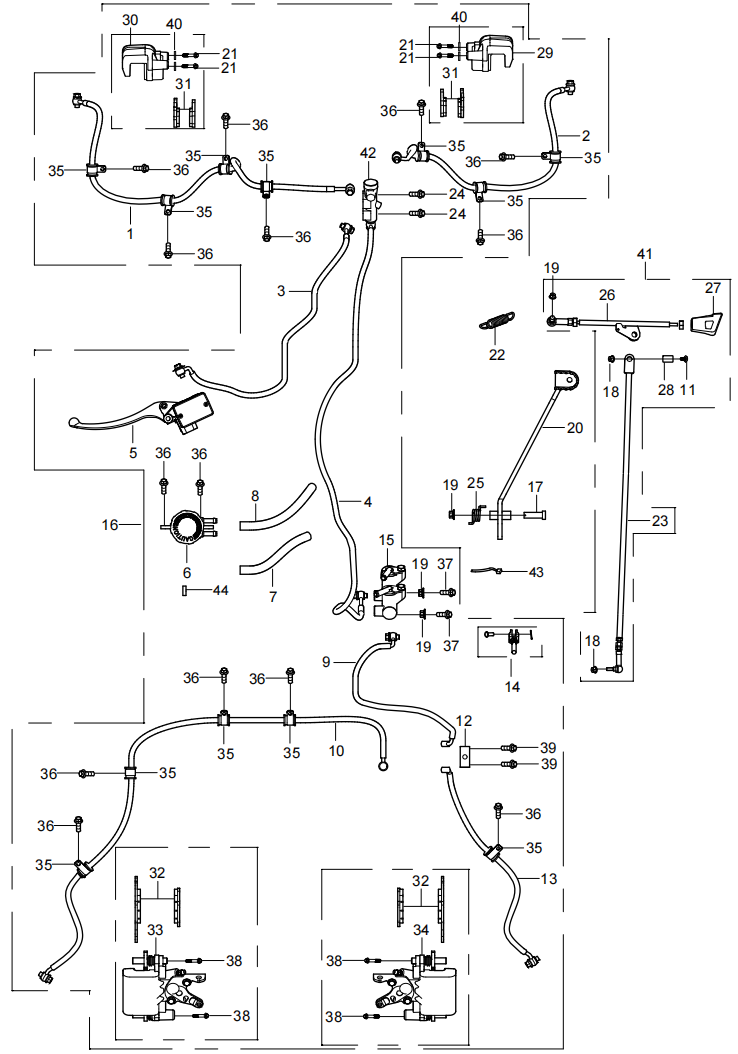

DIAGRAM 2024 AODES BRAKING SYSTEM F12

DIAGRAM 2024 AODES EXHAUST SYSTEM F13

DIAGRAM 2024 AODES SEATS F14

DIAGRAM 2024 AODES COOLING SYSTEM F15

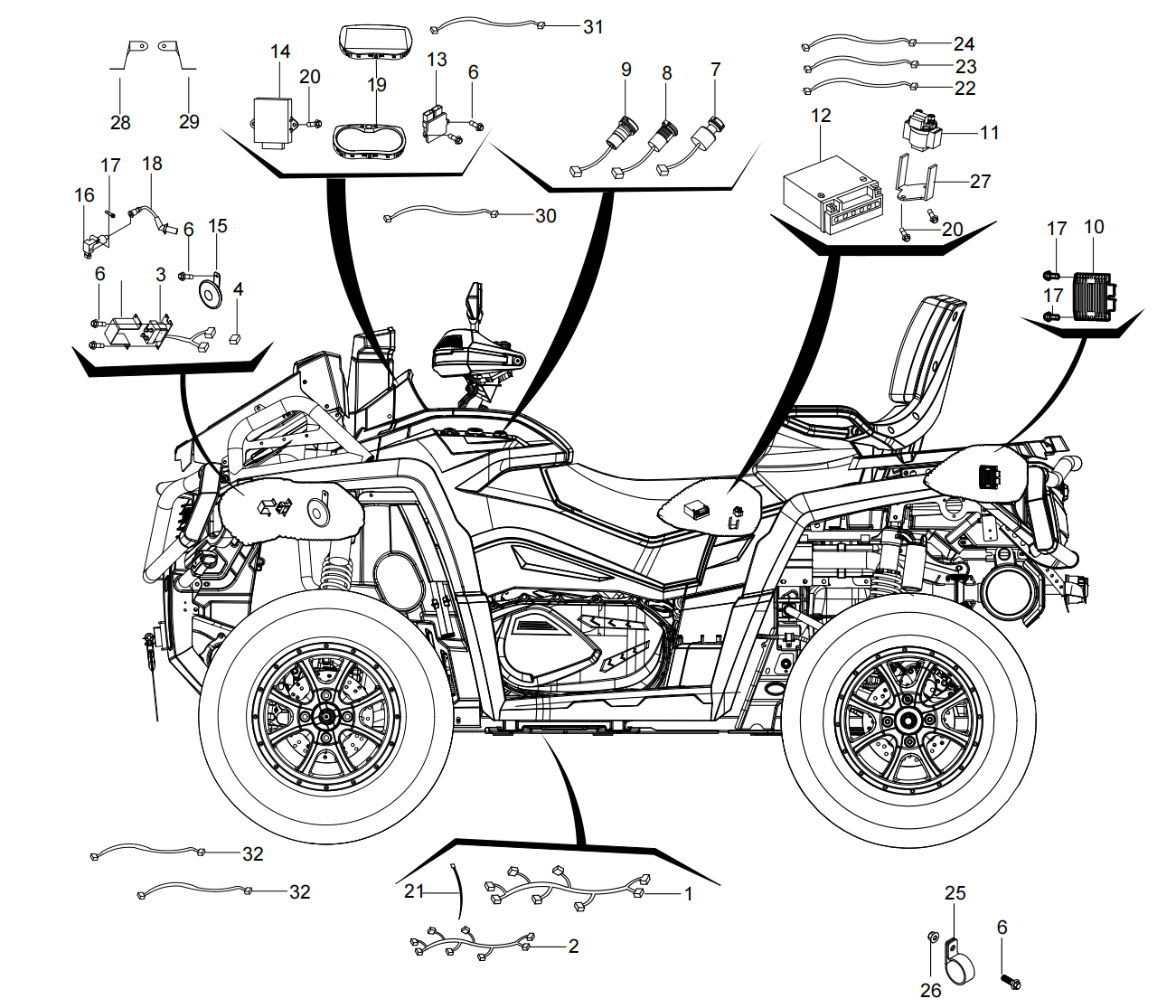

DIAGRAM 2024 AODES ELECTRICAL PARTS F16

DIAGRAM 2024 AODES FRONT PLASTIC F17.1

DIAGRAM 2024 AODES FOOT PEDAL F18

DIAGRAM 2024 AODES SIDEBOARD COMBINATION F19

DIAGRAM 2024 AODES REAR PLASTIC F20

DIAGRAM 2024 AODES FRONT RACKS&FRONT BUMPER F21

DIAGRAM 2024 AODES REAR RACKS&REAR BUMPER F22

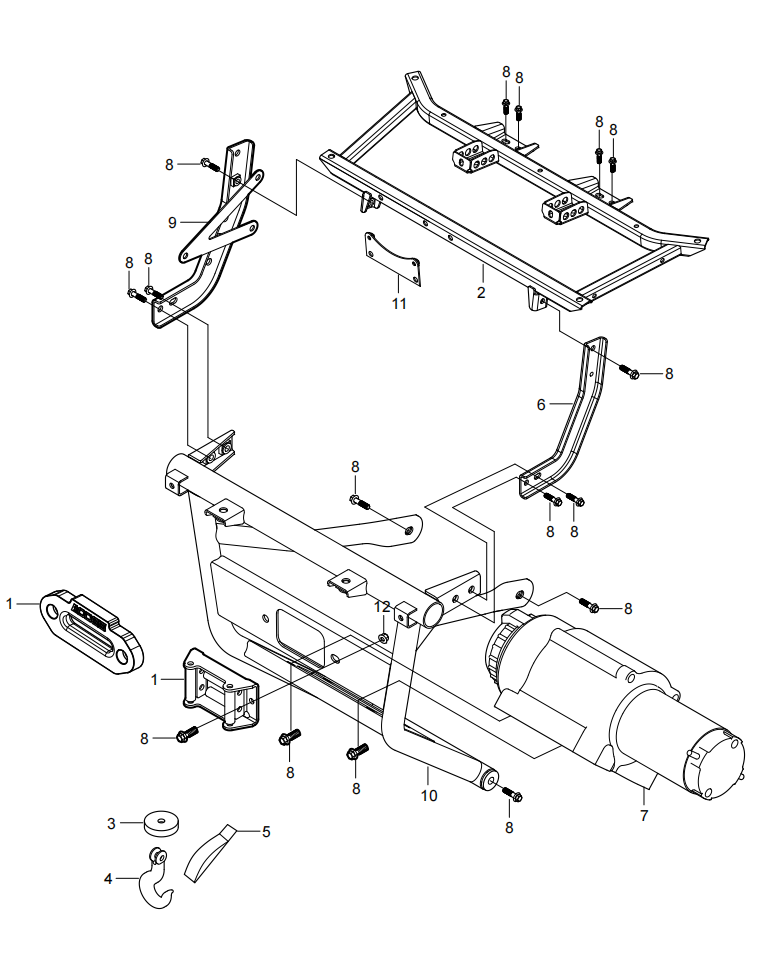

DIAGRAM 2024 AODES FRONT WINCH ASSY (WITH FRONT BUMPER) F23.1

DIAGRAM 2024 AODES FRONT WINCH ASSY (WITH FRONT BUMPER) F23.2

OPTIONAL PARTS-SKID PLATE F24

DIAGRAM 2024 AODES MULTI-FUNCTION LIGHTS F25

DIAGRAM 2024 AODES FRONT DIFFERENTIAL F26

DIAGRAM 2024 AODES REAR DIFFERENTIAL F27

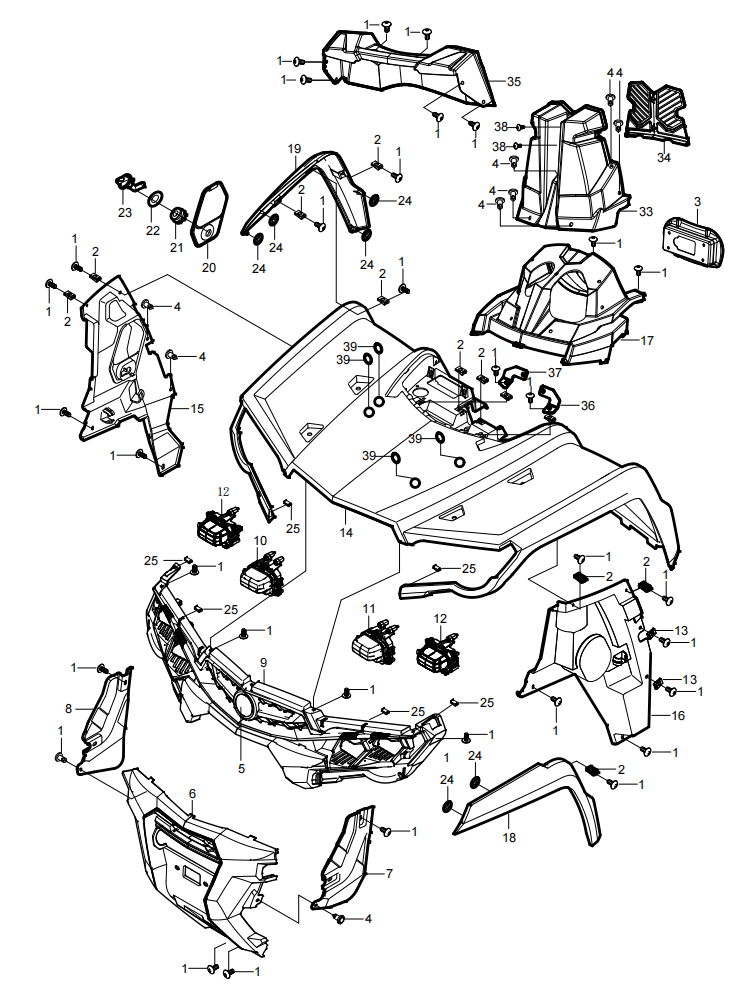

DIAGRAM 2024 AODES FRONT PLASTIC F17.2

DIAGRAM 2024 AODES ENGINE F28
